A combination of tension rolls and straightening units in various specifications can be used to straighten the strip with different materials and specifications. To eliminate the wave of plate and strip (bilateral wave, single side wave, intermediate wave, two rib wave), warping side bend and ladle curve, straight plate and strip are obtained. It can be used for finishing and straightening of decorative plate, carriage board, can cover material and ring material.

Modular design is used, and the combination of different modules can cover all kinds of use requirements. The main functions of the unit are as follows:

The strip is straightened and straightened.

Strip cleaning: two forms of physical cleaning and alkali washing;

Cutting edge: two forms of disc shears and disc knives;

The tail is sutured with the tail.

The inner lining of the line is carried out at the same time with the cutting of the scrap head.

Plate surface testing.

Advanced technology of the unit:

The tension roll group (which has been applied for patent) can be quickly replaced by the roller.

Auxiliary tape device;

Multi function high pressure cleaning machine (which has been applied for patent);

All closed and easy to maintain roller device;

A plate face drying device with high and low pressure wind blades.

With an independent tension mathematical model, it has two modes of extensibility control and tension control and can be switched on line smoothly.

    有多种规格形式的张力辊和矫直单元组合，实现对不同材质、规格的带材的连续带张弯曲矫直。以消除板带材波浪（双边波浪、单边波浪、中间波浪、两肋波浪）、翘曲侧弯及瓢曲，获得平直的板带材。可用于装饰板、车厢板、易拉罐盖料和拉环料等铝板带的精整矫直。

采用模块化设计，不同模块组合可覆盖各种使用需求。机组可实现的主要功能有：

• 板带拉弯矫直；
• 板带清洗：物理清洗和碱洗两种形式；
• 切    边：圆盘剪和碟形刀两种形式；
• 带头带尾缝合；
• 线内穿带与废料头剪切同时进行 ；
• 板面检测。

机组先进技术：

• 可快速更换辊子的张力辊组（已申请专利）；
• 辅助穿带装置；
• 可升降转向辊的多功能高压清洗机（已申请专利）；
• 全封闭便于维护的挤干辊装置；
• 高、低压风刀组合的板面吹干装置。
• 具有独立张力数学模型，拥有延伸率控制和张力控制两种模式并可平稳在线切换。

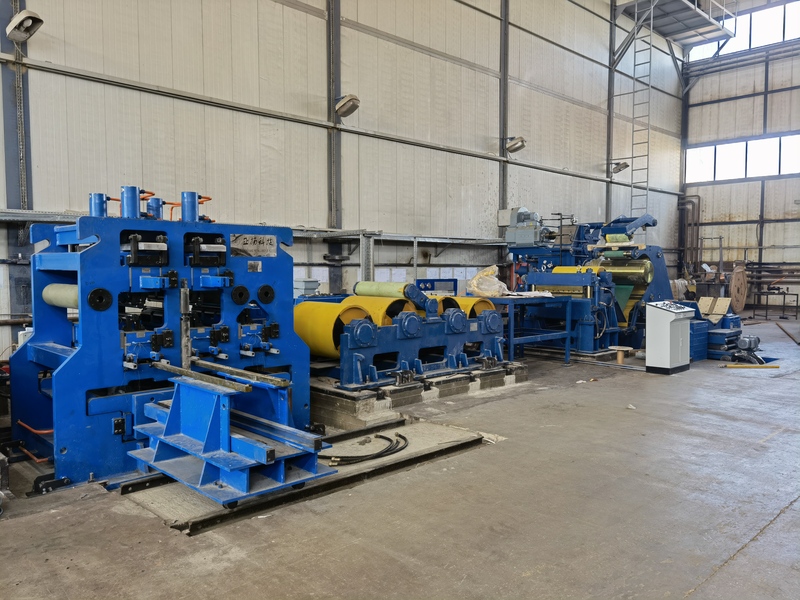

设备工作现场图片：
